Description

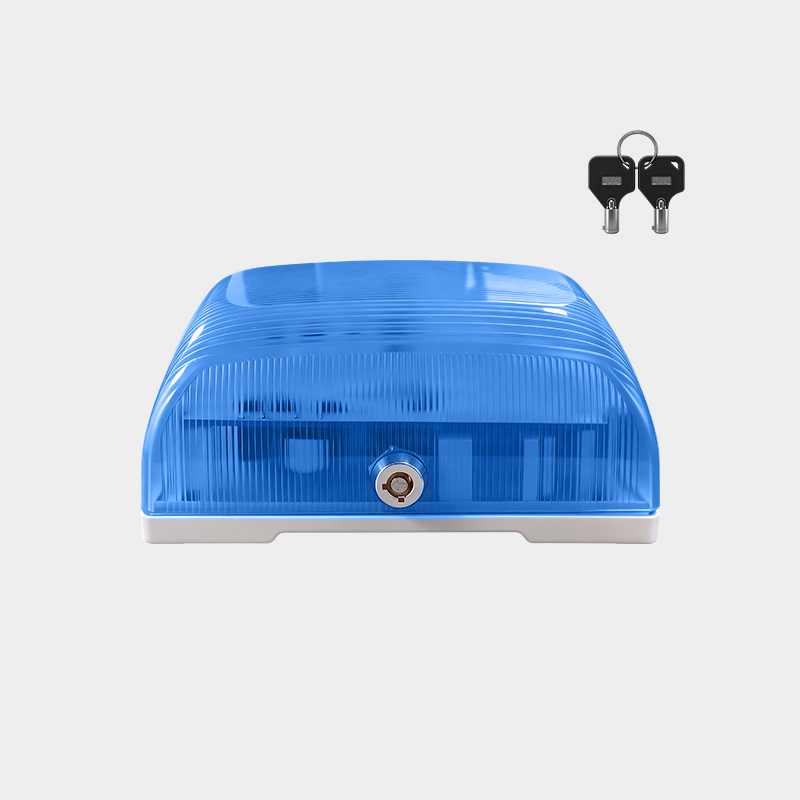

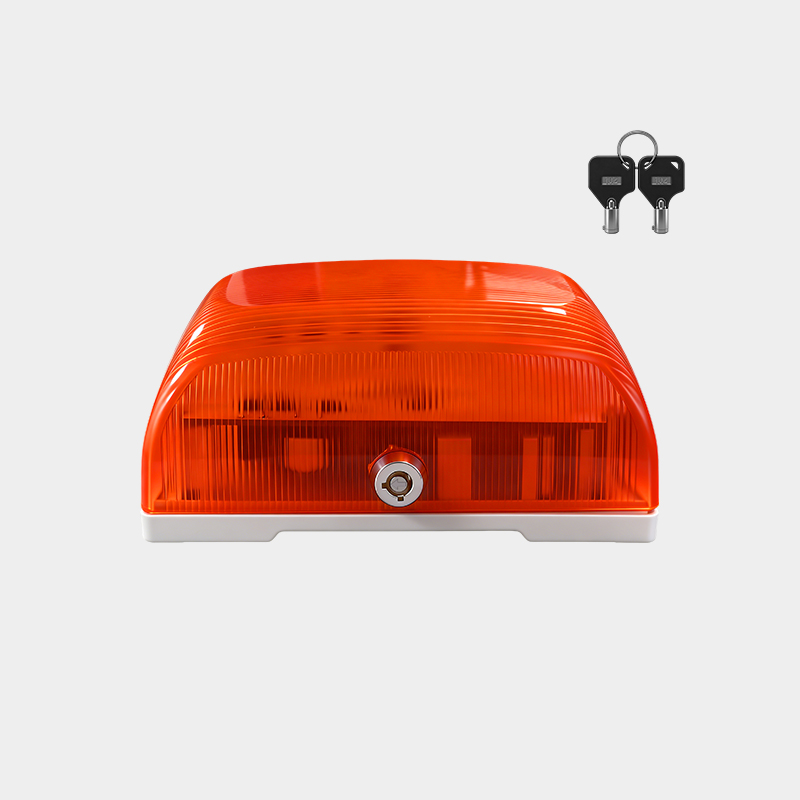

This new compact siren is equipped with a fully integrated sound/flashing function, an automatically activated disconnect timer, a backup battery, and a U-resistant ABS housing. It is designed to monitor the status of the door and remind the open/close status through alarms and flashing lights. The alarm can be used alone or in conjunction with other alarm systems.
Features
· Double tamper protection to prevent the upper cover from being removed or the alarm from being removed.
Equipped with built-in 7.2V rechargeable battery.
· Penetrating alarm sound with super bright strobe light.
Use jumpers to optimize delay time and alarm time.
DA-130
-
Voltage9 -15VDC
-
Current Consumption Standby15 mA at 12VDC
-
Backup Battery7.2V 500mA rechargeable
-
Siren Current30mA ~120mA at 12VDC
-
Flash Current80mA-160mA at 12VDC
-
Siren Outputadjustable to 103dB
-
Flash Rate1Hz,2Hz
-
Timers1 min, 3 min, ;15 min, continuous
-
Delay Times0 sec, 10sec, 30 sec, 60 sec
-
Operating Temperature Range-25°C to +70°C
-
Housing MaterialABS with UV Resistant;different housing colors.
-
Len ColorBlue, Red, Orange color are selectable
-
Size130X78X58mm
-
Weight0.45KG
