SHENZHEN ANVOX ALARM SYSTEMS CO., LTD  ꄲ  OUTDOOR SIREN  ꄲ  HSL-700P
ꁆ ꁇ

outdoor alarm is a new generation of professional high-power acoustic alarm equipment, equipped with battery backup and flashlight function, with all the performance and reliability of security alarm system.

· Outdoor battery backup alarm with dual LED lights. Unique horizontal design and installation method.

HSL-700P instruction manual download

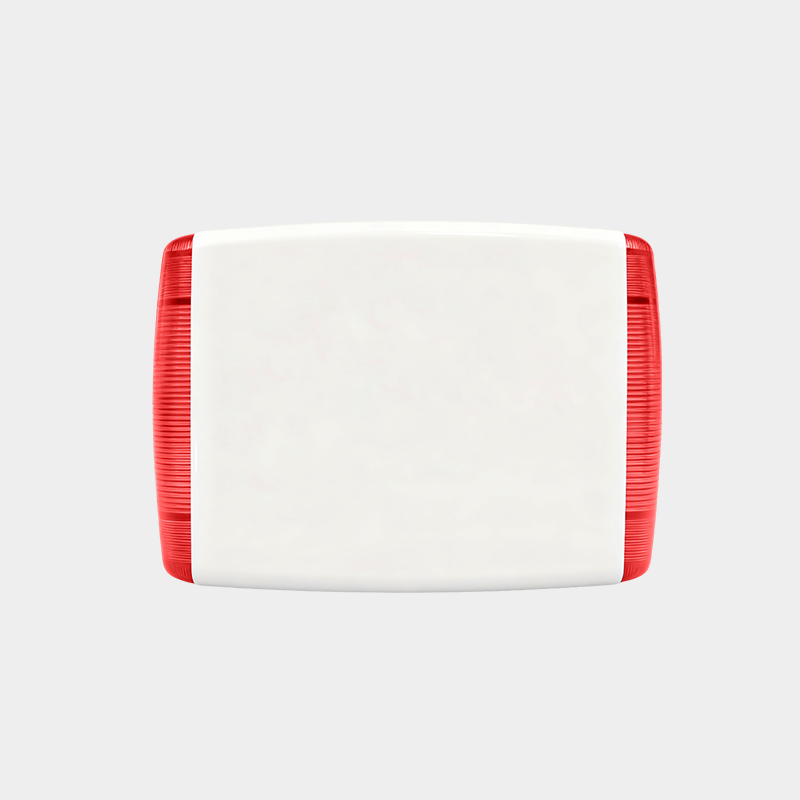

HSL-700P

  • SPL
    120 DB
  • Fundamental Frequency
    1850Hz
  • Siren Tone
    YELP
  • Frequency Range
    800HZ~3500Hz
  • Flashlight
    Twin Sliding LED
  • Power supply Voltage
    13.5-14.5VDC
  • Charge Current Limit
    100mA
  • Current Consumption (Speaker and strobe)
    Alarm 400mA@13.5VDC；Standby: 8mA
  • Maximum Power
    50W(peak)
  • Trigger Level
    Trigger Low=Max.1VDC；Trigger High=Min.9VDC
  • Siren Alarm Period
    1m, 3m, 15m；or CONT (Follow trigger)
  • Input Impedance (Alarm/Flash/Trigger)
    1K ohm
  • Tamper Switch
    N.C 28VDC Maximum current 0.1A-open when cover is removed
  • Backup Battery
    Rechargeable NIMH 7.2V 500mA battery.
  • Low Battery Level
    6VDC+/-0.3VDC
  • Material
    Internal cover: zinc plated metal
  • Dimensions of Unit
    L=313mm*W=222mm*H=68mm
  • Weight(without battery)
    1.55kg
  • Operating Temperature Range
    -30 to +60℃
  • Case Protection Level
    Water splash resistant；Plastic ABS with UV Protection；Conformal coated circuit board
